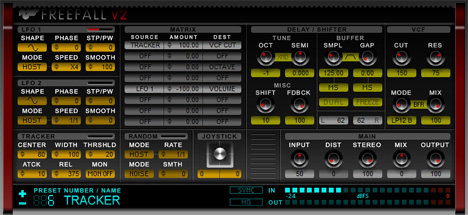

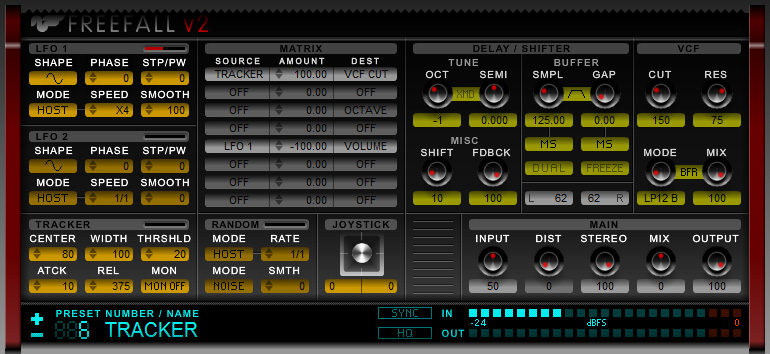

FreeFall v2 is a hybrid delay effect / pitch shifter.

A variable buffer block is captured and modulated by a 11x12 matrix. A combination of tune, size and gap modulations are the core of this effect.

LFOs:

• SHAPE: Waveform shape.
• PHASE: Phase shift.
• STP / PW: STP=add steps to waveform, PW=When PULSE is selected.
• MODE: SPEED mode.
• SMTH: Smooth the waveform, Soft and Hard.

TRACKER:

• FRQ: Frequency.
• WIDTH: Selectivity.
• THRSHLD: Threshold.
• ATCK: Attack.
• REL: Release.
• MON: Filetered signal monitoring.

RANDOM :

• RATE / MODE: Density / BPM / BPM ratio / Hz.
• MODE: NOISE / S&H / SPRING.
• SMTH: Smooth the wave.

JSTICK :

• Assignable through the matrix.
• Text field allow direct input.

DELAY/SHIFTER :

• OCTAVE: Octave tuner.
• SEMI: Semitone/Cent tuner.
• X = cross modulation from the matrix.
• SMPL: size length.
• GAP: gap length.
• MODE: BPM or ms.
• ENVelope: Sine, Rectified sine, Trapez.
• FRZ: Freeze the current sample block.
• FDBCK: Feedback.
• SHIFT: L/R phase shift.

VCF:

• CUT: cut-off frequency.
• RES: resonance.
• MIX: Dry/Wet.
• MODE: TYPE + dB + Model.
• BF/AF: POSITION.

MISC:

• SYNC: Synchronize all oscillators.
• INPUT: input adjustement.
• DIST: Distortion.
• STEREO: Stereo filed, zero = mono.
