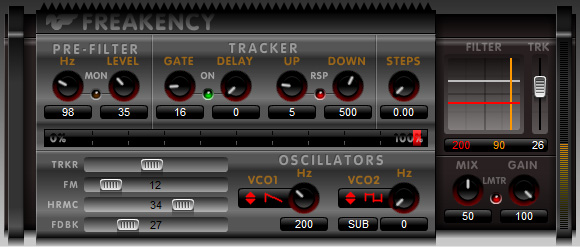

Freakency provides analog glitcheries effects.

Need a fresh and original effect ? The shaped audio input modulate a couple of VCOs. A 24 dB LPF ending the stream. Percussive sound is highly recommended. Monophonic.

PRE-FILTER:

• Hz: Frequency band to isolate.
• LEVEL: Adjustement.

TRACKER:

• GATE: optional GATE (override normal mode).
• DELAY: delayed trigger.
• UP: attack time (ms).
• DOWN: release time (ms).
• RSP: response / slope, allow 3 behaviors.

OSCILLATORS:

• TRCKR: modulation amount from TRACKER.
• HRMNC: VCO1 & 2 harmonic.
• FDBCK: Feedback, re-inject final output to VCO1 PHASE.
• VCO1 / Hz : maximum frequency driven by the TRACKER.
• VCO2 : different modes linked from VCO1 (RING, FM, SUB).
• FILTER : LPF 24 dB, X = resonance Y = Cut-Off, TRCK = mod. from TRACKER.
