Signal Analyzer
by Robin Schmidt
by Robin Schmidt
4.5 / 5
(10 votes)

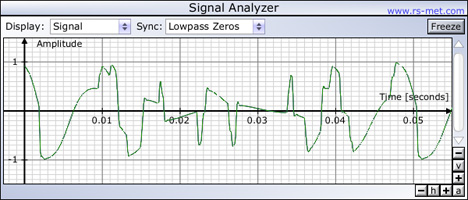

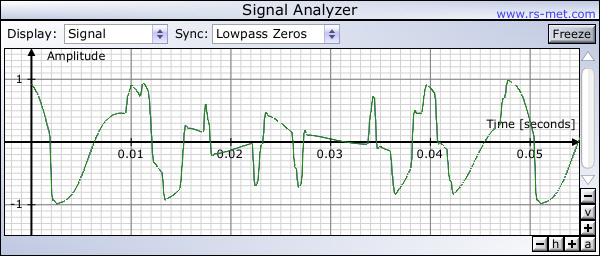

Signal Analyzer is a combined oscilloscope/spectrum-analyzer plugin for inspecting signals in realtime in the time and frequency domain.
The oscilloscope's refresh rate may be synchronized to the period of the incoming signal to stabilize the plot of periodic waveforms. Both views may be frozen and the frozen display can be exported into a .png file.
The oscilloscope's refresh rate may be synchronized to the period of the incoming signal to stabilize the plot of periodic waveforms. Both views may be frozen and the frozen display can be exported into a .png file.
- Oscilloscope and spectrum analyzer.
- Independent zoom for both axes.
- Synchronization to input signal (oscilloscope).
- Spectral resolution up to 32768 bands.
Downloads
Win 32 VST
(0.7 Mb)
(5 / 5)
The only free oscilloscope i could find that allows me to sync the waveform instead of it uselessly free-running
(5 / 5)
Thank you so much!
(5 / 5)
useful :)
(5 / 5)
Great oscilloscope. Wanted something simple to measure when my preamp starts clipping, this is perfect, thanks.
(1 / 5)
After installing and using I had immediate problems in Cubase (VST connection failed, no sound anymore), even after deleting the plug-in and restarting the software. The plug-in is not compatible.
(5 / 5)
The plugin is very good, it's a pity to no work in AbletonLive9 ... I'm sad (((...
(5 / 5)
Nice spectrum analyser ! Useful for chasing aliasing.
(5 / 5)
Great tool for learning dynamics :)
