NCAR - free Summing mixer plugin

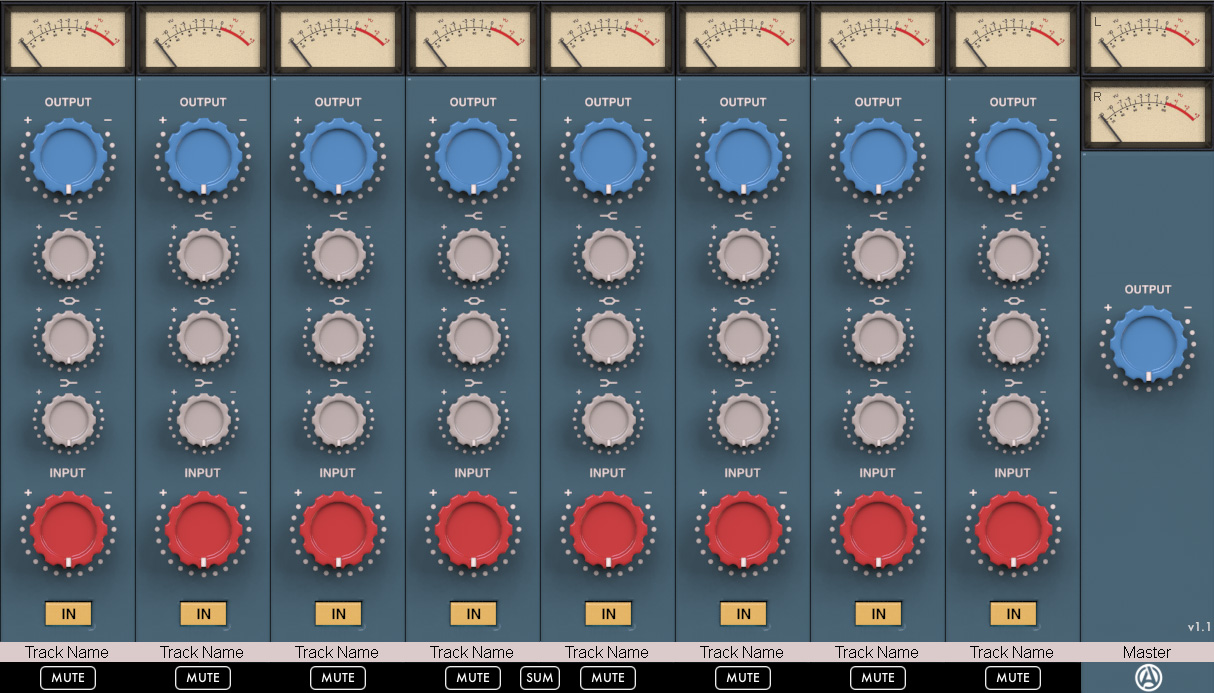

NCAR is a 8 Stereo I/O summing mixer plugin.

Strip Functions:
  • Preamp.
  • 3 Band Fixed Equalizer ( 110Hz - 1.6kHz - 10kHz).
  • Output.
  • VU Meter (L+R Sum).
  • Editable Track Name Entry.
  • Bypass.
  • Channel Mute.
Master Functions:
  • Output.
  • VU Meter.
  • Editable Track Name Entry (L/R).
Routing Steps (SUM mode):
  • Put NCAR to Bus channel.
  • Send your individual tracks or bus tracks to NCAR track.
  • Select input channels which you want to use (See track explanation).
  • Now, you are able to hear 8 Stereo Inputs from NCAR's 1 Stereo Out.
Routing Steps (IND mode):
  • Put NCAR to Bus channel.
  • Send your individual tracks or bus tracks to NCAR track.
  • Select input channels which you want to use (See track explanation).
  • Send NCAR's outputs to new or existing tracks.
  • Now, you are able to hear each channel's outputs from routed tracks.

Track Explanation SUM mode:

Inputs:
  • Track 1 : Input 1-2
  • Track 2 : Input 3-4
  • Track 3 : Input 5-6
  • Track 4 : Input 7-8
  • Track 5 : Input 9-10
  • Track 6 : Input 11-12
  • Track 7 : Input 13-14
  • Track 8 : Input 15-16
Outputs:
  • Track 1 : Output 1-2


Track Explanation IND mode:

Inputs:
  • Track 1 : Input 1-2
  • Track 2 : Input 3-4
  • Track 3 : Input 5-6
  • Track 4 : Input 7-8
  • Track 5 : Input 9-10
  • Track 6 : Input 11-12
  • Track 7 : Input 13-14
  • Track 8 : Input 15-16
Outputs:
  • Track 1 : Output 1-2
  • Track 2 : Output 3-4
  • Track 3 : Output 5-6
  • Track 4 : Output 7-8
  • Track 5 : Output 9-10
  • Track 6 : Output 11-12
  • Track 7 : Output 13-14
  • Track 8 : Output 15-16
