SoftAmp PSA is a virtual-analog guitar pre-amp supplemented with noise gate and compressor, all modeled after famous guitar gear that needs no introduction.
At its core there are 5 distortion stages. First three are based on op-amps with zener diodes in the feedback chain, while the last two are just op-amps being overdriven into saturation. They are followed by tonestack, speaker simulator and an output level control. Each overdrive stage has a distinct frequency shaping quality according to their names. See the EQ plot in the bottom right corner for details.
All stages are modeled as nonlinear filters with their outputs depending on both the frequency and the amplitude of the input signal. It gives the most accurate digital representation, compared to cascaded filter/static waveshaper approach.

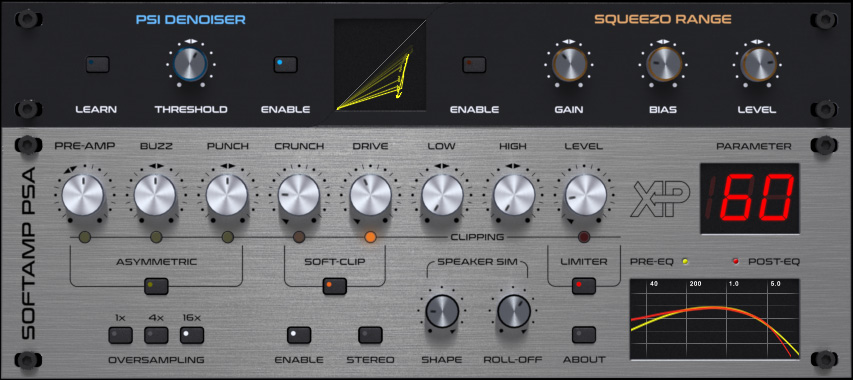

In addition to the basic controls, there are two more knobs that control the speaker simulator parameters - Shape and Rolloff. With both knobs at 0, the speaker simulator is completely bypassed (for example, to be used with external impulse loader).
Giving even finer control over the gain structure, there are two more buttons - Asymmetric and Soft-Clip. The former applies to the zener diode stages and replaces the default 4.7v/4.7v zener pair with intentionally unbalanced 3.3v/4.7v pair to saturate the signal with even harmonics. The more the first three stages are overdriven, the more pronounced is the effect. See the clipping LED indicators to have a feel of which stage gets the most saturation from the signal. The Soft-Clip function applies to the two overdriven op-amps and changes their open-loop gain from 1 million to just 200. This effectively makes the transition from linear to saturated region much more softer, making the distortion less harsh and also helping the fading notes sound smoother.
The PSI Denoiser noise gate has a handy "Learn" function. Don't play anything on your guitar and hit the Learn button. As soon as the LED goes off, the gate threshold would be automatically set to your noise level. The noise gate is applied directly to the input signal.
The Squeezo Range compressor is applied to the signal right before entering the PSA pre-amp. It's a very nonlinear, but musical sounding device. It acts as both upward and downward compressor depending on the gain and bias setting. In the original device those controls were not available for user adjustment.
At its core there are 5 distortion stages. First three are based on op-amps with zener diodes in the feedback chain, while the last two are just op-amps being overdriven into saturation. They are followed by tonestack, speaker simulator and an output level control. Each overdrive stage has a distinct frequency shaping quality according to their names. See the EQ plot in the bottom right corner for details.
All stages are modeled as nonlinear filters with their outputs depending on both the frequency and the amplitude of the input signal. It gives the most accurate digital representation, compared to cascaded filter/static waveshaper approach.
In addition to the basic controls, there are two more knobs that control the speaker simulator parameters - Shape and Rolloff. With both knobs at 0, the speaker simulator is completely bypassed (for example, to be used with external impulse loader).
Giving even finer control over the gain structure, there are two more buttons - Asymmetric and Soft-Clip. The former applies to the zener diode stages and replaces the default 4.7v/4.7v zener pair with intentionally unbalanced 3.3v/4.7v pair to saturate the signal with even harmonics. The more the first three stages are overdriven, the more pronounced is the effect. See the clipping LED indicators to have a feel of which stage gets the most saturation from the signal. The Soft-Clip function applies to the two overdriven op-amps and changes their open-loop gain from 1 million to just 200. This effectively makes the transition from linear to saturated region much more softer, making the distortion less harsh and also helping the fading notes sound smoother.
The PSI Denoiser noise gate has a handy "Learn" function. Don't play anything on your guitar and hit the Learn button. As soon as the LED goes off, the gate threshold would be automatically set to your noise level. The noise gate is applied directly to the input signal.
The Squeezo Range compressor is applied to the signal right before entering the PSA pre-amp. It's a very nonlinear, but musical sounding device. It acts as both upward and downward compressor depending on the gain and bias setting. In the original device those controls were not available for user adjustment.
